7.2W 5.8W Collimated Machine Vision Backlight 1 Channel Compact Design

Product Categories
OPT Machine Vision Tech Co., Ltd.
Contact Now

7.2W 5.8W Collimated Machine Vision Backlight 1 Channel Compact Design

Brand Name : OPT

Model Number : OPT-FP8272

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-FP8272

Product name : Collimated Backlights

Color : Blue/White/Red/Green

Output : W: 24V/7.2W R: 24V/5.8W B: 24V/5.8W G: 24V/5.8W

Channels : 1

Housing Size（Length） : 82

Emitting Size（Diameter） : 52

Feature : Higher relative brightness

Contact Now

24V Collimated Backlights Machine Vision Backlight 1 Channel Compact Design OPT-FP Series OPT-FP8272

Product Features

◆ The collimated backlight has highly collimated illumination when inspection or defects detection.
◆ It has very compact design and it is suitable for high accuracy gauging in machine vision industry.
◆ Used together with the coaxial optical system to detect minor defects and damages on smooth surfaces.
Application Cases
◆ Gauging for mechanical parts
◆ Contour inspection for electronic parts
Specifications
Model OPT-FP8272
Color Red/White/Blue/Green
Output W: 24V/7.2W R: 24V/5.8W B: 24V/5.8W G: 24V/5.8W
Channels 1
Housing Size(Length) 82
Recommended Controller OPT-DPA2024E
Emitting Size(Diameter) 52

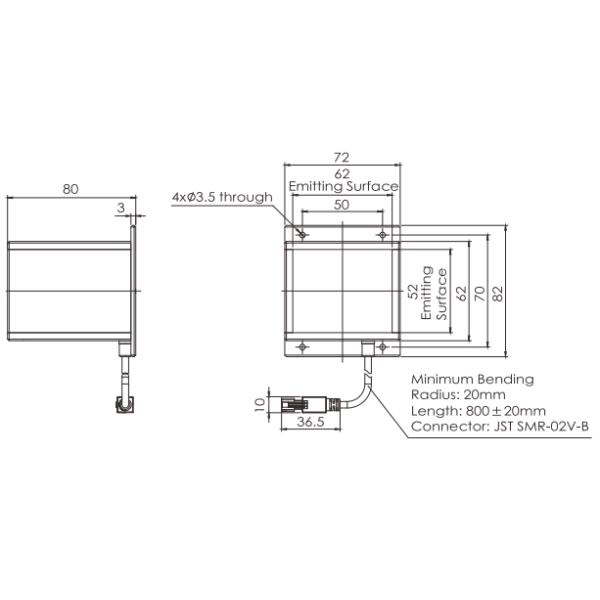

Dimensions (mm)
OPT-FP8272
7.2W 5.8W Collimated Machine Vision Backlight 1 Channel Compact Design


Product Features

7.2W 5.8W Collimated Machine Vision Backlight 1 Channel Compact Design

Applications: Inner frame positioning of mobile phone screen

7.2W 5.8W Collimated Machine Vision Backlight 1 Channel Compact Design

FAQ

What machine vision refers to?

Machine vision is a kind of technology that enables machine to see for industrial detection, measurement, recognition and positioning. Machine vision can greatly improve production efficiency and automation.
